Description
Cat #: EC_and_Mini-ROBO-Cylinder_Switching_from_Air_to_Electronic_2pFlyer_20210209
Pages: 2
The PDF version can be downloaded from here.
It’s very simple!

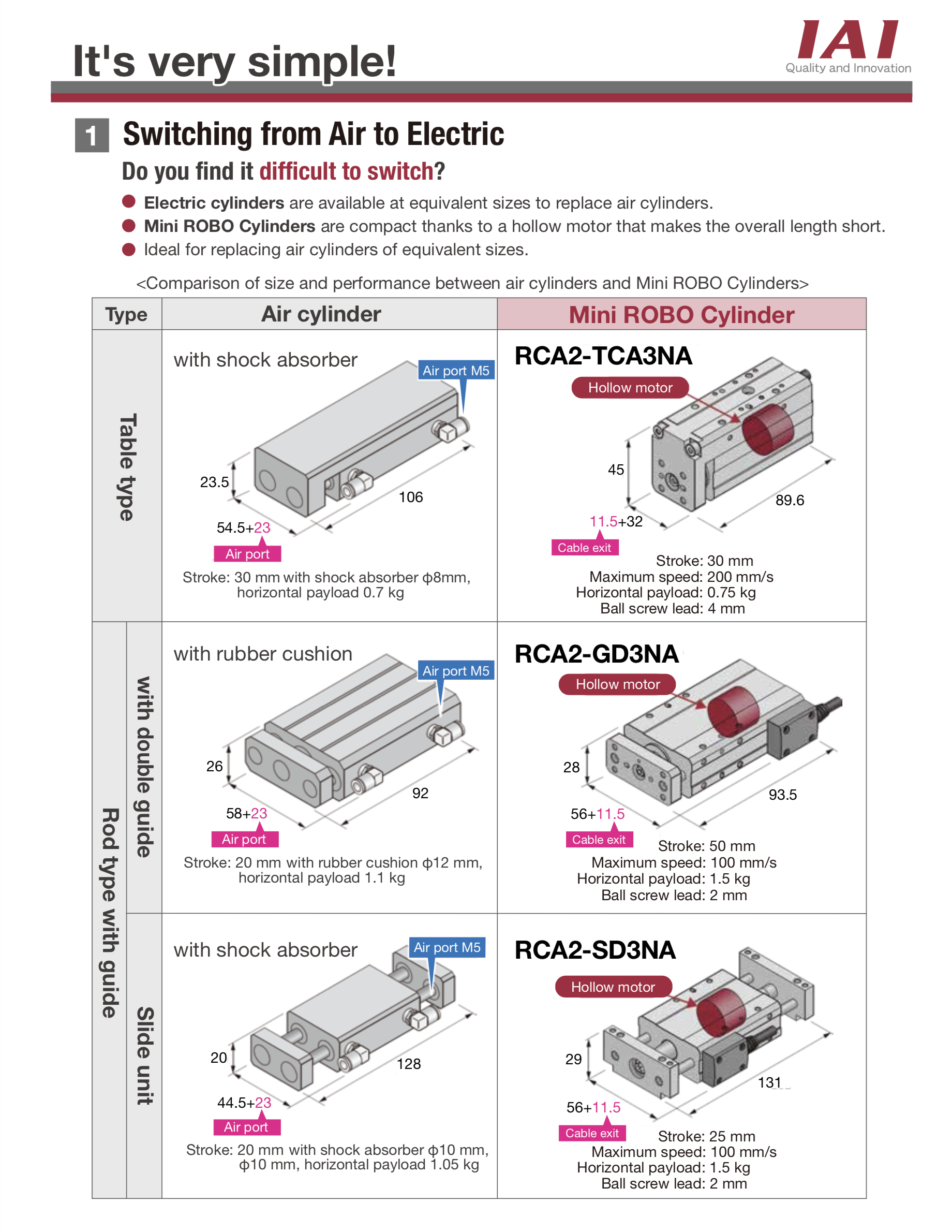

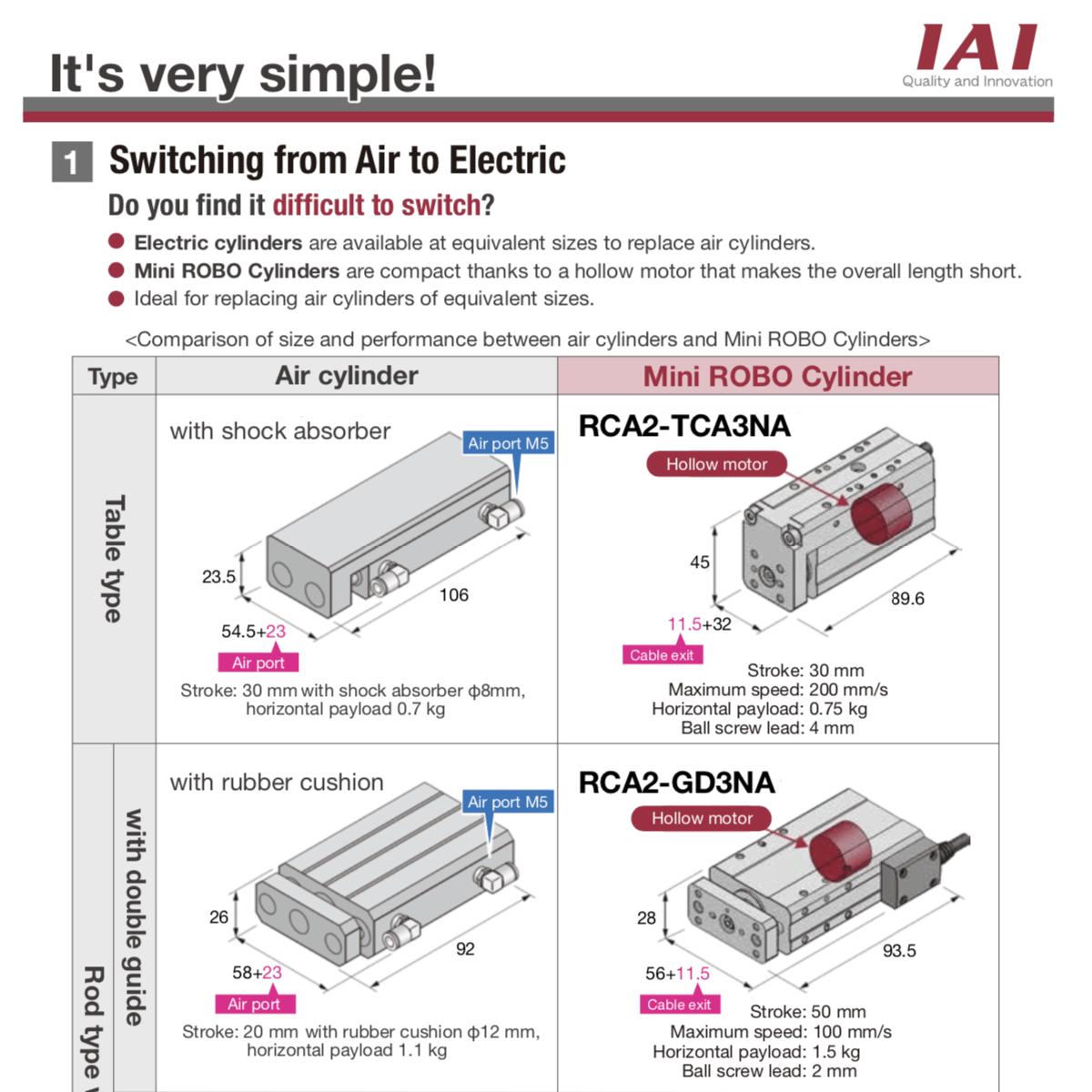

1. Switching from Air to Electric
Do you find it difficult to switch?
-
● Electric cylinders are available at equivalent sizes to replace air cylinders.
● Mini ROBO Cylinders are compact thanks to a hollow motor that makes the overall length short.
● Ideal for replacing air cylinders of equivalent sizes.

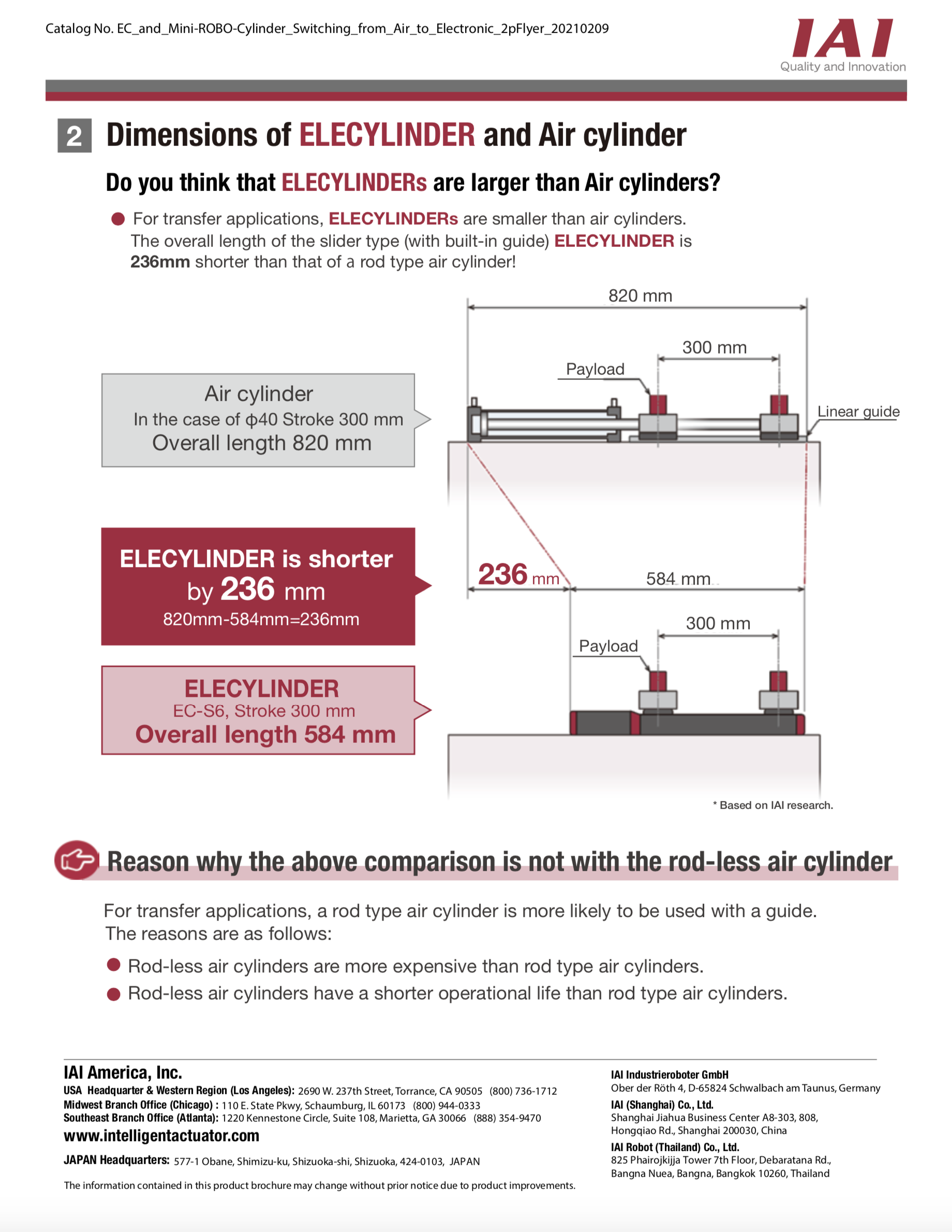

2. Dimensions of ELECYLINDER and Air cylinder
Do you think that ELECYLINDERs are larger than Air cylinders?
-
● For transfer applications, ELECYLINDERs are smaller than air cylinders.
The overall length of the slider type (with built-in guide) ELECYLINDER is
236mm shorter than that of a rod type air cylinder!
